Magnetic Separation Tube

1.Principle:
XCGS - type magnetic tube is in C type electromagnet between two extremes, equipped with glass tube to do reciprocating movement and swing, by sorting the sample through a magnetic field, the magnetic part is attached to the wall near the non-magnetic parts in the mechanical movement is wash and discharge water.
2.Type structure introduction:

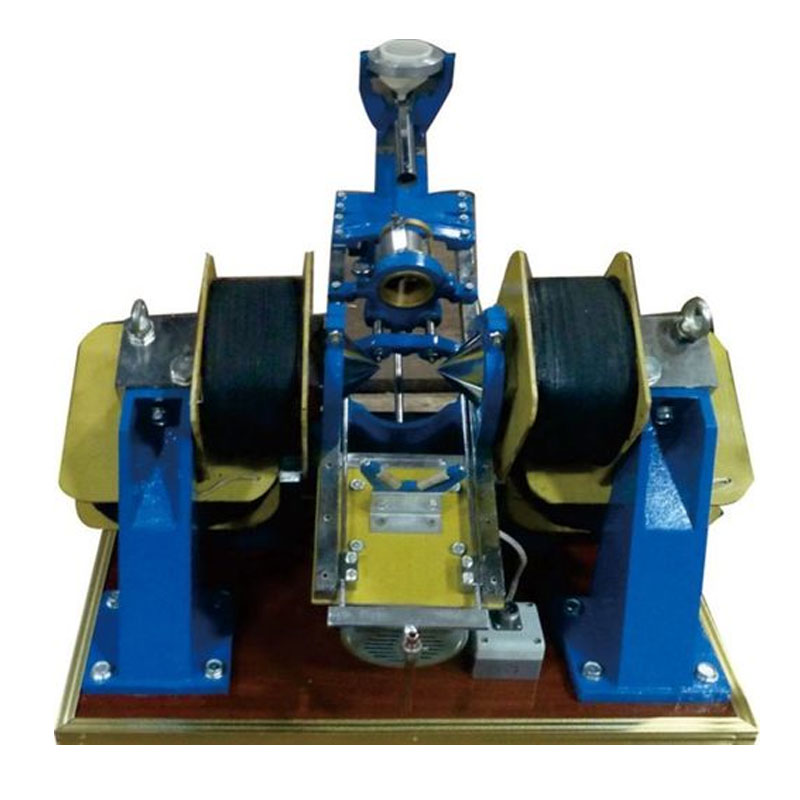

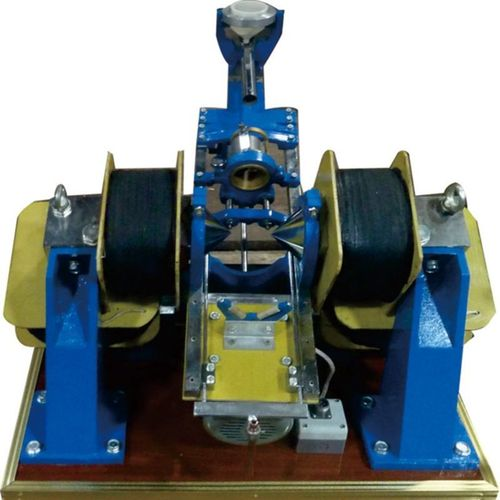

XCGS - magnetic separation tube is composed of host and excitation power supply. The host as shown in figure (a). Installed on the base of the bracket (4) (5) is by core C (1) and the field winding (3) fixed support, in the extreme with magnetic flux hoop (6) so as to hold bracket (7). The glass tube (2) is embedded in the circular ring (11) and placed between the magnetic poles through the sliding frame (10). The motor (8) makes it swing through the reduction mechanism (9) with the help of the crank (12). Glass tube device with horizontal line to 0 °, 40 ° Angle. The reciprocating movement stroke of the pipe is 40 millimeters and the swing is 45°. The upper end of the pipe is open, and the test material is given from here. The lower part of the pipe is slender. A rubber tube with a clamp can be placed over its slender part. The clamp is used to adjust the water flow out. The flushing water is injected from the upper branch pipe of the glass tube.

3.Electric principle:

4.Installation, and operation and matters needing attention to install:

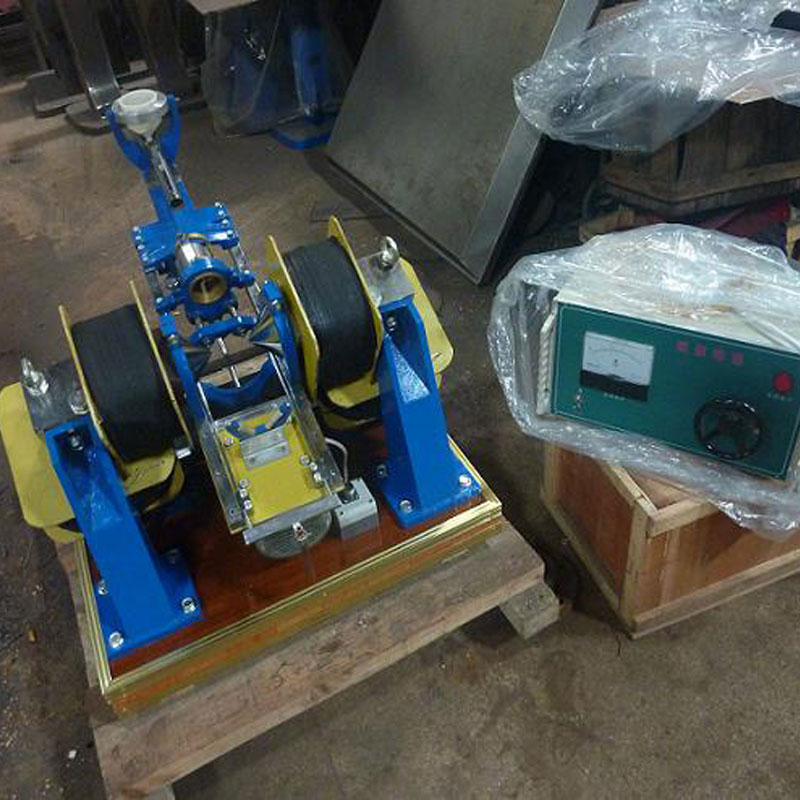

XCGS - type magnetic separation tube host and excitation power just placed on the wooden frame, before use should be stripped all the wrapping paper, wipe rust-proof oil and check whether all the fastening screw loosening, It can be used only after confirming that the mechanical operation part and all the welding points of the part are in normal condition. On of the excitation and excitation power supplies and host the power of the motor, can boot commissioning (in the input voltage 220 v + 10 v, excitation current can be adjusted to the largest 4 a). Connect the glass tube with a rubber hose to fill water, and attach a soft rubber hose to the upper end of the glass tube.
