Laboratory Jigging Machine

Short Description:

Laboratory Jigging Machine is used for gravity beneficiation. Gravity beneficiation is based on the different proportion of ore and the different settling speed in the medium. The difference in mineral weight is used to complete the stratification and classification of mineral mixture. LJM Diaphragm Jig is suitable for the experimental research of black and non-ferrous metals, chemistry, construction and so on.

CONTACT NOW

Product Detail

Product Tags

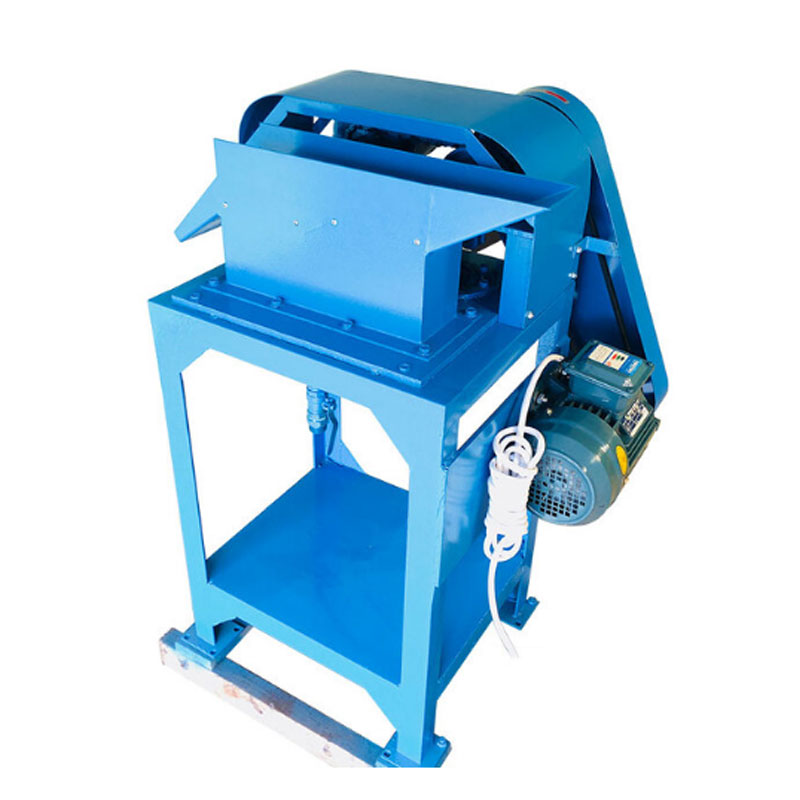

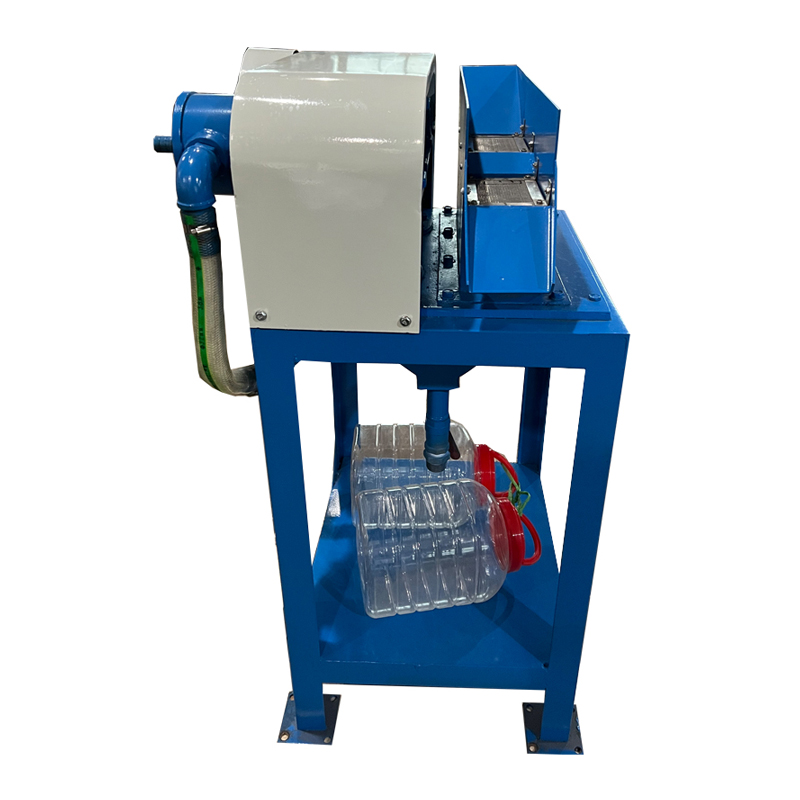

Product Pictures

Product Parameters

Model	Unit	XCT100×150	XCT200×300
Length of jig chamber	Mm	150	300
Width of jig chamber	Mm	100	200
Number of jig chamber	PCS	2	2
Jigging room area	㎡	0.03	0.06
Eccentric maximum stroke	Mm	0-20	0-32
Maximum feeding size	Mm	0-3	0-6
Strokes per minute	1/min	440	346
Capacity	t/h	0.02-0.7	0.02-0.7
Maximum amount of sieve water	L/S	0.117	0.117
Maximum amount of water on the screen	L/S	0.10	.010
Motor Power	Kw	0.55	0.75
Motor revolution	r/min	1400	1400
Dimension	Mm	754×584×902	1110×820×1312
Weight	kg	150	175
